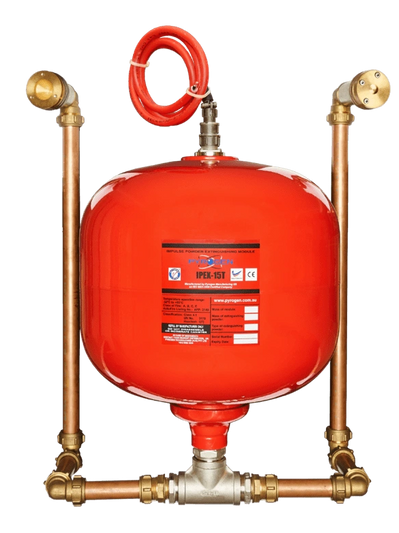

IPEX-Impulse Powder Extinguishing Module

Designation:
The Pyrogen IPEX-15 T is a dual-action impulse extinguishing module, combining ABC dry chemical powder with a gas-aerosol generator. It is engineered to combat fires across multiple classes, including flammable solids, liquids, gases, and electrical fires up to 1,000 Volts.
⚠ Not suitable for fires involving alkali metals, alkali-earth metals, or self-combusting materials without air admission.

Main Parameters:

• Discharge Time: ≤ 5 seconds

• Activation Time: ≤ 10 seconds

• Electrical Parameters:

  • Activation current: 0.4 Amp

  • Circuit resistance: 3.0 – 6.5 Ohms

  • Safe monitoring current: ≤ 0.01 Amp

  • Max activation current: 3.0 Amp

  • Minimum activation duration: ≥ 0.1 seconds

• Minimum Service Life (Transport Use): ≥ 5 years


Supply Package:
Each IPEX-15 T module comes complete with:

• The extinguishing module

• An electrical actuator

• An electrical connector


Construction & Operation:
Built with a steel casing, the IPEX-15 T houses ABC extinguishing powder, a gas-aerosol generator, and an electrical actuator.
When activated by electrical current, the gas-aerosol generator ignites, releasing a three-dimensional gas-aerosol mixture, which quickly suppresses the fire.

Safety Measures:

• Installation and servicing must be carried out only by certified personnel.

• Do not connect to any power source prior to installation.

• Ensure electrical disconnection before entering the protected space.

• Follow proper safety protocols during post-discharge cleanup.


Design & Installation:

• Suitable for mounting inside or outside protected spaces.

• Typically installed on a wall or vertical structural surface.

• Installation requires consultation with the owner/operator to ensure correct placement and nozzle orientation.


Maintenance:

• Perform monthly visual inspections for damage or modifications.

• Regularly check:

  • Electrical detection and activation circuit

  • Insulation and connection joints

  • Discharge nozzles


Service Life:
The IPEX-15 T provides a reliable service life of 5 years from the date of installation when used on transport or mobile equipment.
